CNC Machining - CNC Milling and Turning Plant and Equipment

RAB Manufacturing utilises new, state of the art machining equipment

Our CNC Lathe will precisely mill, drill, turn and tap

The Three Axis CNC Lathe will accommodate material 345mm in diameter by 990mm in length and the 65mm Bar Feeder will process bars up to a length of 1.2m.

  • turning diameter of 345mm x 990mm
  • 12 tool station turret
  • fully programmable tailstock
  • 75mm spindle quill high pressure through tool coolant
  • Fanuc 21i-TB CNC system
  • tool setter
  • parts catcher

The third axis allows higher accuracy in drilling flanges, cutting keyways and drilling grease lines, all of which is performed in one operation with the turning.

CNC Lathe

CNC Lathe



CNC Bar Feeder

CNC Lathe and 65mm Bar Feeder

To see some examples of components we have manufactured, click here.



The Three Axis Machining Centre will mill, drill and thread

The Three Axis CNC Machining Centre boasts a 1,100mm x 600mm x 700mm machine size and 24 magazine tool change.

  • extra reach of 650mm spindle centre to column
  • 20 HP spindle motor with BT#40 holders
  • through spindle cooling unit
  • rigid tapping
  • Fanuc Oi-MC CNC System controller for higher reliability and accuracy
  • detailed jobs are programmed by Mastercam prior to being uploaded to the system

The Three Axis Machining Centre will also drill on and off centre, and cross-drill.

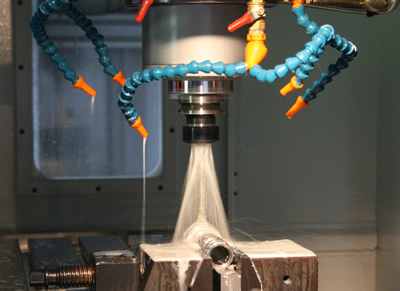

High Speed Drilling with CNC Machining

High Speed Drilling

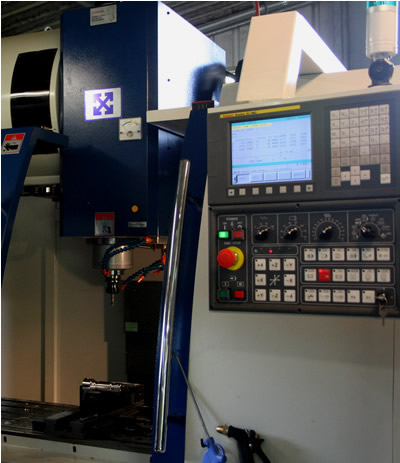

Fanuc Control Panel Fanuc Control Panel
